JavaDoc

• doc-files in Javadoc
• Integration of a Logo into the Documentation

---

doc-files in JavaDoc

You can provide additional files for the Javadoc documentation of your project (and only to the documentation) by creating a folder with the name doc-files in the respective package folder and copying the files there.

From the Javadoc in your source file, your refer to these files like this: <a href="doc-files/docFile.xyz">Link to File</a>.

Although the javadoc tool itself still supports this, it does not work properly when used with Maven or Gradle.

Maven is using a special copy operation that takes care of the additional files, but for Gradle I had to create my own solution¹.

The first approach looked like this:

tasks.named( 'javadoc' ) {
    mustRunAfter "jar"

    //---* Configure Javadoc *-------------------------------------------------
    …
    doLast {
        …

        copy {
            from "$projectDir/src/main/java"
            into "$destinationDir"
            include "**/doc-files/*"
        }
    }
}

It worked for projects that do not use JPMS². The reason is that for a module the HTML files for the documentation are kept in a folder that is named after the module.

To illustrate that, the directory trees for a project with just the class foo.bar.Main, first without a module, then with the module my.module:

Without module	With module
└ javadoc ├ index-files ├ legal ├ foo │ └ bar │ ├ class-use │ └ Main.html ⋮ ├ allclasses-index.html ⋮ └ type-search-index.js	└ javadoc ├ index-files ├ legal ├ my.module │ ├ module-summary.html │ └ foo │ └ bar │ ├ class-use │ └ Main.html ⋮ ├ allclasses-index.html ⋮ └ type-search-index.js

Unfortunately, there is no method in Gradle to get the Java module name; ok, the convention is to name the module after the project’s main package, and I have the convention to name the project after the module … but at the same time, I have multi-module (this time Gradle modules) projects where the projects have modules or not (so for example, annotation processors do not work well when implemented as a module …).

So I used this method to obtain the module name³:

/**
 *  Determines the module name of a Java 9 (Jigsaw) module
 *  (don't mix this up with a module as it is defined by Gradle
 *  itself!)}.
 *  The implementation will search the source path for a file with the
 *  name "module-info.java" and gets the name of the module from there.
 *  Call this function from your build.gradle file like this:
 *
 *      var moduleName = Tools.obtainModuleName( project.sourceSets.main )
 *
 *  @param  sourceSet   The source set for the project.
 *  @return An instance of
 *      {@link Optional}
 *      that holds the name of the module.
 */
public static final Optional<String> obtainModuleName( final SourceSet sourceSet )
{
    Optional<String> retValue = Optional.empty();

    final var directorySet = sourceSet.getAllJava();
    final var moduleDefinitionFile = directorySet.getFiles()
        .stream()
        .filter( File::exists )
        .filter( File::isFile )
        .filter( f -> f.getName().equals( MODULE_DEFINITION ) )
        .findFirst()
        .map( File::toPath );
    if( moduleDefinitionFile.isPresent() )
    {
        try( final var lines = lines( moduleDefinitionFile.get() ) )
        {
            final var contents = lines.collect( joining() );
            final var pattern = compile( ".*module\\s+(\\S+)\\s*\\{.*" );
            final var matcher = pattern.matcher( contents );
            if( matcher.matches() )
            {
                retValue = Optional.ofNullable( matcher.group( 1 ) );
            }
        }
        catch( final IOException e )
        {
            throw new Error( e );
        }
    }

    //---* Done *----------------------------------------------------------
    return retValue;
}   //  obtainModuleName()

It lives in a class named org.tquadrat.build.Tools in my case; that allows me to write the copy command like this now:

tasks.named( 'javadoc' ) {
    mustRunAfter "jar"

    //---* Configure Javadoc *-------------------------------------------------
    …
    doLast {
        …

        var moduleName = org.tquadrat.build.Tools.obtainModuleName( project.sourceSets.main )
        var targetDir = moduleName.map( "/%s"::formatted ).orElse( "" )
        copy {
            from "$projectDir/src/main/java"
            into "$destinationDir/javadoc$targetDir"
            include "**/doc-files/*"
        }
    }
}

---

Integration of a Logo into the Documentation

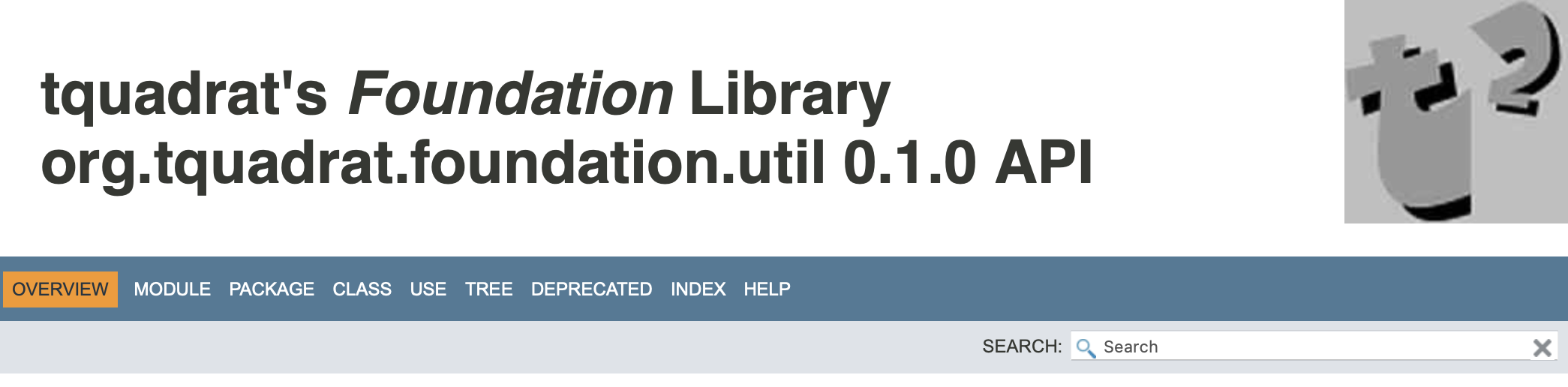

I want to have a logo on each page of the Javadoc documentation for my projects, so that it looks like this:

To achieve this, my Javadoc task in Gradle looks like this:

tasks.named( 'javadoc' ) {
    String topValue = """
      <div style="overflow:auto;">
          <img src="{@docRoot}/resources/logo.jpg"
               alt="logo"
               style="float:right;">
          <p style="font-family:sans-serif;font-size:40px;font-weight:bold;padding-left:30px;">My Library</p>
      </div>
      """

    options {
        …
        addStringOption( 'top', topValue )
        …
    }

    doLast {
        copy {
            from "$projectDir/../resources/javadoc/logo.jpg"
            into "$destinationDir/resources"
        }
    }
}

The HTML code in topValue can be adjusted according to individual needs. Also the source location for the logo can be different.

1. Meanwhile I got a tip that Gradle’s JavaDoc task should work on project.sourceSets.main.getAllJava() instead of on projects.sourceSets.main.getAllSource(). If true, it should help if I add all the doc-files folders and their contents to the source set. I need to test this … ↩

2. The Java Platform Module System, introduced through the Jigsaw project in Java 9. ↩

3. Sorry, but my Groovy skills are still … poor, at best. But of course, the method can be implemented in Groovy, too. ↩
